Description

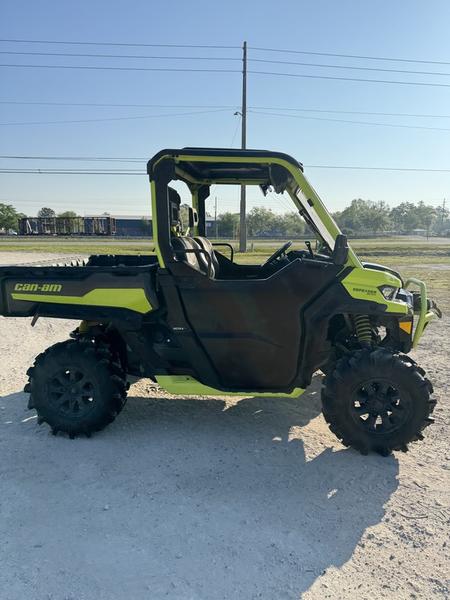

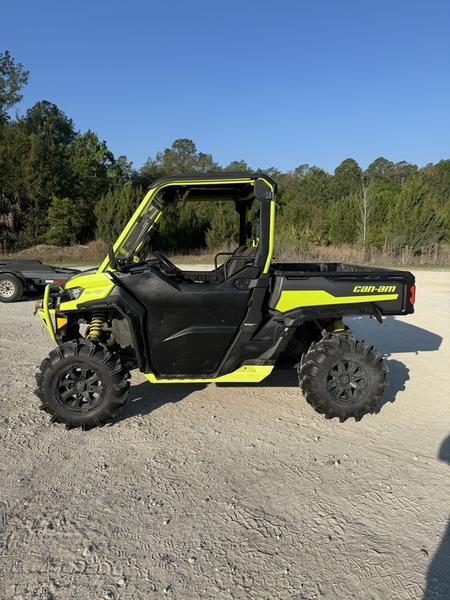

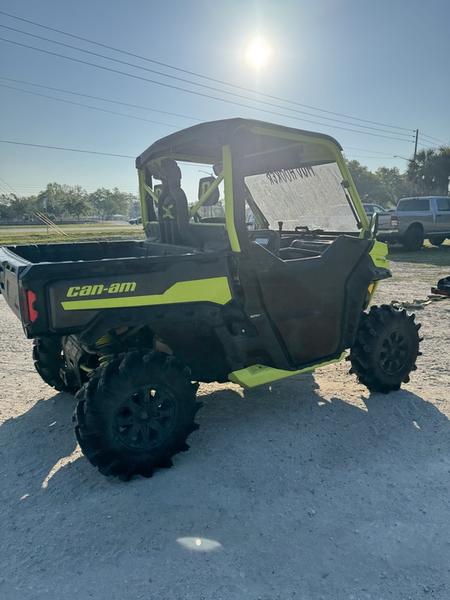

Pre-Owned 2021 Can-Am® Defender X mr HD10
82 hp Rotax® HD10 V-Twin • Smart-Lok™ 4WD MUD • Snorkeled Engine + CVT Intakes • ITP Cryptid 30-in. Mud Tires • 15-in. Ground Clearance • 4,500 lb Winch • Full Skid Plate
ENGINE
Rotax® HD10 976cc V-Twin, 82 hp
TORQUE
69 lb-ft (93.6 Nm)
DRIVE SYSTEM
Smart-Lok™ 4-Mode: Turf / 2WD / 4WD Trail / 4WD MUD
GROUND CLEARANCE
15 in. (381 mm) — X mr exclusive
TIRES
ITP Cryptid 30 × 9-14 / 30 × 11-14
WINCH
4,500 lb factory winch with roller fairlead
TOWING CAPACITY
2,500 lb (1,134 kg)
PAYLOAD CAPACITY
1,500 lb (680 kg)
Performance Specifications at a Glance
|
Specification |
Detail |
|
Engine |
Rotax® HD10 976 cc V-twin, 4-stroke, SOHC, liquid-cooled |
|
Horsepower |
82 hp (61.2 kW) @ 7,000 RPM |
|
Torque |
69 lb-ft (93.6 Nm) |
|
Valves |
8 valves (4 per cylinder) |
|
Fuel System |
iTC™ (Intelligent Throttle Control) with Electronic Fuel Injection (EFI) |
|
Engine Braking |
Standard |
|
Transmission |
PRO-TORQ CVT with QRS — Extra-L / H / N / R / P |
|
Drive System |
Smart-Lok™ — Turf / 2WD / 4WD Trail / 4WD MUD |
|
Power Steering |
Dynamic Power Steering (DPS) |
|
Ground Clearance |
15 in. (381 mm) |
|
Towing Capacity |
2,500 lb (1,134 kg) |
|
Payload Capacity |
1,500 lb (680 kg) |
|
Fuel Capacity |
10.6 gal (40 L) |
|
Estimated Dry Weight |
1,697.6 lb (770 kg) |
|
Seating Capacity |
3 persons (bench, folding) |
|
Warranty |
1-year BRP Limited; B.E.S.T. available up to 30 months |
Engine — 82 hp Rotax® HD10 V-Twin
The Defender X mr HD10 is powered by the Rotax® HD10 — a 976cc V-twin 4-stroke engine with SOHC valve actuation (8 valves, 4 per cylinder) and liquid cooling for consistent performance in demanding operating conditions. The engine produces 82 horsepower at 7,000 RPM and 69 lb-ft of torque, channeled through BRP’s Intelligent Throttle Control (iTC™) system for precise, responsive power delivery in mud, water crossings, and technical terrain.
SNORKELED ENGINE AIR INTAKE
The X mr’s engine air intake is factory-snorkeled — the intake point is raised above the engine bay to allow the vehicle to operate in deep water and mud without ingesting liquid into the combustion system. This is a defining X mr feature not found on any other Defender variant.
|
Engine Specification |
Detail |
|
Engine Brand |
Rotax® |
|
Type |
V-twin, 4-stroke, SOHC, liquid-cooled |
|
Displacement |
976 cc (59.5 ci) |
|
Bore × Stroke |
91 mm × 75 mm (3.58 × 2.95 in.) |
|
Valvetrain |
SOHC, 8 valves (4 per cylinder) |
|
Horsepower |
82 hp (61.2 kW) @ 7,000 RPM |
|
Torque |
69 lb-ft (93.6 Nm) |
|
Fuel System |
iTC™ Intelligent Throttle Control with Electronic Fuel Injection (EFI) |
|
Fuel Type |
Regular unleaded |
|
Cooling |
Liquid-cooled |
|
Air Intake |
Snorkeled (X mr exclusive — raised intake point for deep-water operation) |
|
Starter |
Electric start |
|
Engine Braking |
Standard |
|
Fuel Capacity |
10.6 gal (40 L) |
Transmission — PRO-TORQ CVT with Snorkeled CVT Intake
The PRO-TORQ Continuously Variable Transmission features BRP’s Quick Response System (QRS) for reduced belt slippage and rapid power transfer, Electronic Drive Belt Protection to prevent overheating and premature wear, and high-airflow ventilation. Critically for the X mr application, the CVT air intake is also factory-snorkeled — the intake and exhaust ports are repositioned to prevent mud and water from being drawn into the belt housing during submersed operation. Hi and Lo ranges are selectable, and full gear positions include Extra-Low, High, Neutral, Reverse, and Park.
|
Transmission Specification |
Detail |
|
Type |
PRO-TORQ Continuously Variable Transmission (CVT) |
|
CVT System |
Quick Response System (QRS) — reduced belt slip, fast engagement |
|
Drive Belt Protection |
Electronic Drive Belt Protection — monitors and safeguards belt from heat damage |
|
CVT Ventilation |
High-airflow; CVT air intake snorkeled (X mr exclusive) |
|
Range |
Extra-L / H (High) / N (Neutral) / R (Reverse) / P (Park) |
|
Primary Drive (engine → trans) |
Belt |
|
Final Drive |
Shaft |
Drive System — Smart-Lok™ 4-Mode with 4WD MUD X MR EXCLUSIVE
The Defender X mr HD10 features Smart-Lok™ — BRP’s electronically controlled differential locking system developed in conjunction with TEAM Industries. Unlike standard Defender trims, the X mr’s Smart-Lok can lock both the front and rear differentials simultaneously in 4WD MUD mode, providing maximum traction in the most extreme mud and water conditions. Dynamic Power Steering (DPS) is standard, automatically adjusting steering assistance based on speed and load.
Smart-Lok™ Drive Modes
TURF MODE
Unlocks the rear differential for tighter turning radius — protects sensitive turf and grass from damage during low-speed maneuvering
2WD
Rear-wheel drive for efficient operation on hard-packed surfaces, roads, and light-duty tasks where 4WD is not required
4WD TRAIL
Smart-Lok engages the front differential proportionally — ideal for trail driving, uneven terrain, and general off-road traction management
4WD MUD
X mr exclusive — Smart-Lok locks both front AND rear differentials simultaneously for maximum mud and deep-water traction
|
Drive Specification |
Detail |
|
Drive System |
Selectable Turf / 2WD / 4WD Trail / 4WD MUD |
|
Differential System |
Smart-Lok™ (developed with TEAM Industries) |
|
Differential Lock Location |
Front AND Rear (in 4WD MUD mode) |
|
Number of Drive Modes |
4 |
|
Power Steering |
Dynamic Power Steering (DPS) — speed-sensitive |
|
Tilt Steering |
Standard |
Suspension & Chassis
The Defender X mr HD10 rides on an independent double A-arm front suspension and a Trailing Torsional A-arm HD (TTA-HD) rear suspension, delivering 10 inches of wheel travel at each corner. Both front and rear feature external stabilizer bars and preload-adjustable shocks to handle the additional weight of deep mud and water crossings. The chassis frame is profiled steel, ROPS certified for occupant protection.
|
Suspension / Chassis Specification |
Detail |
|
Front Suspension |
Independent Double A-Arm with front stabilizer bar |
|
Front Travel |
10 in. (254 mm) |
|
Front Shock Preload |
Adjustable |
|
Rear Suspension |
TTA-HD (Trailing Torsional A-arm HD) with rear stabilizer bar |
|
Rear Travel |
10 in. (254 mm) |
|
Rear Shock Preload |
Adjustable |
|
Rear Shocks |
2 |
|
Frame |
Profiled steel, ROPS certified |
|
Ground Clearance |
15 in. (381 mm) |
X mr Package — Mud-Ready from Winch to Tail X MR EXCLUSIVE
The Defender X mr HD10 is built for mud and water operation from the factory. Every X mr-specific component is selected and positioned to survive submersed running conditions that would damage a standard utility UTV. No aftermarket snorkel kit or mud preparation is needed — the X mr arrives ready for the deepest terrain on your property or trail system.
|
X mr Feature |
Detail |
|
Engine Snorkel |
Factory raised engine air intake — protects combustion system during deep water crossings (X mr exclusive) |
|
CVT Snorkel |
Factory repositioned CVT air intake and exhaust — prevents mud/water ingestion into the belt housing (X mr exclusive) |
|
Smart-Lok™ 4WD MUD |
Locks both front and rear differentials simultaneously — maximum traction in the deepest mud (X mr exclusive; other Defenders do not have rear diff lock) |
|
ITP Cryptid Mud Tires |
30 × 9-14 front / 30 × 11-14 rear — aggressive knobby tread designed for mud self-cleaning and flotation |
|
Ground Clearance |
15 in. (381 mm) — higher than standard Defender XT (13 in.) for deeper clearance over obstacles |
|
4,500 lb Winch |
Factory-installed winch with roller fairlead for self-recovery from mud and stuck situations |
|
CV Boot Covers |
Protects CV joint boots from mud packing and debris that causes premature failure |
|
HMWPE Full Skid Plate |
High molecular weight polyethylene full-length undercarriage protection — standard |
|
Front Mud Guards |
Full front mud guards — keep mud off the engine bay and cooling system |
|
Rear Mud Guards |
Full rear mud guards — reduce rear roost on passengers |
|
Front Fender Flares |
Extended flares to contain tire spray in muddy conditions |
|
Nerf Bars |
Standard entry protection |
|
Hard Roof (Cab Canopy) |
Factory hard canopy — standard on X mr for weather and debris protection |
|
Front Bumper |
Heavy-duty steel front bumper — standard |
|
Brush Guard |
Factory front brush guard |
|
Tow Hook |
Standard |
Tires, Wheels & Brakes
The ITP Cryptid tires are purpose-built for mud — wide side lugs for sidewall traction in the ruts, aggressive open tread pattern for self-cleaning, and a bias-ply construction that flexes over rocks and roots. Brake performance is maintained through all four hydraulic disc brakes with standard engine braking providing additional control on downhill sections.
|
Specification |
Detail |
|
Front Tires |
ITP Cryptid 30 × 9-14 (knobby mud tread) |
|
Rear Tires |
ITP Cryptid 30 × 11-14 (knobby mud tread) |
|
Wheels |
14-in. aluminum (front and rear) |
|
Front Brakes |
Dual hydraulic disc |
|
Rear Brakes |
Dual hydraulic disc |
|
Engine Braking |
Standard |
Dimensions & Capacities
|
Measurement |
Specification |
|
Overall Width |
64 in. (1,625.6 mm) |
|
Overall Height |
82 in. (2,083 mm) |
|
Wheelbase |
83 in. (2,115 mm) |
|
Ground Clearance |
15 in. (381 mm) |
|
Estimated Dry Weight |
1,697.6 lb (770 kg) |
|
Payload Capacity |
1,500 lb (680 kg) |
|
Towing Capacity |
2,500 lb (1,134 kg) |
|
Hitch Type |
2-inch receiver hitch (standard) |
|
Fuel Capacity |
10.6 gal (40 L) |
|
Storage Capacity |
16.2 gal (61.3 L) total |
Cargo Box
|
Measurement |
Specification |
|
Cargo Box Length |
38 in. (965 mm) |
|
Cargo Box Width |
54.5 in. (1,384 mm) |
|
Cargo Box Height |
12 in. (305 mm) |
|
Cargo Box Capacity |
1,000 lb (454 kg) |
|
Tie-Down Hooks |
Integral — standard |
Seating & Cab
|
Feature |
Detail |
|
Seating Capacity |
3 persons (bench seat, 1 row) |
|
Seat Type |
Vinyl bench — folding, with headrests and grab rail |
|
Seat Belts |
Standard at all positions |
|
Cab Canopy |
Hard roof — factory standard |
|
Cab Doors |
Soft cab doors |
|
Cab Cage / Rollbar |
ROPS-certified steel cage |
|
Cupholders |
2 |
|
Underseat Storage |
Standard |
|
Glove Box / Dash Storage |
Standard |
Technology & Instrumentation
|
Feature |
Detail |
|
Display |
Digital multi-function display |
|
Speedometer |
Digital — standard |
|
Tachometer |
Standard |
|
Trip Odometer |
Standard |
|
Hour Meter |
Standard |
|
Clock |
Standard |
|
Fuel Gauge |
Standard |
|
Temperature Warning |
Warning light |
|
Voltage Meter |
Standard |
|
Battery Status Gauge |
Standard |
|
Power Steering |
Dynamic Power Steering (DPS) |
|
Power Outlet |
Standard 12V |
|
Lighting |
LED headlights; LED tail and brake lights |
|
Winch |
4,500 lb factory winch with roller fairlead and tow hook |
|
Winch Mount |
Standard |
Warranty & Coverage
|
Coverage |
Term |
|
Factory Warranty |
1-year BRP limited warranty |
|
Extended Service |
B.E.S.T. (BRP Extended Service Terms) — available up to 30 months |
|
Contact |
See dealer for full warranty terms and B.E.S.T. pricing |
