Description

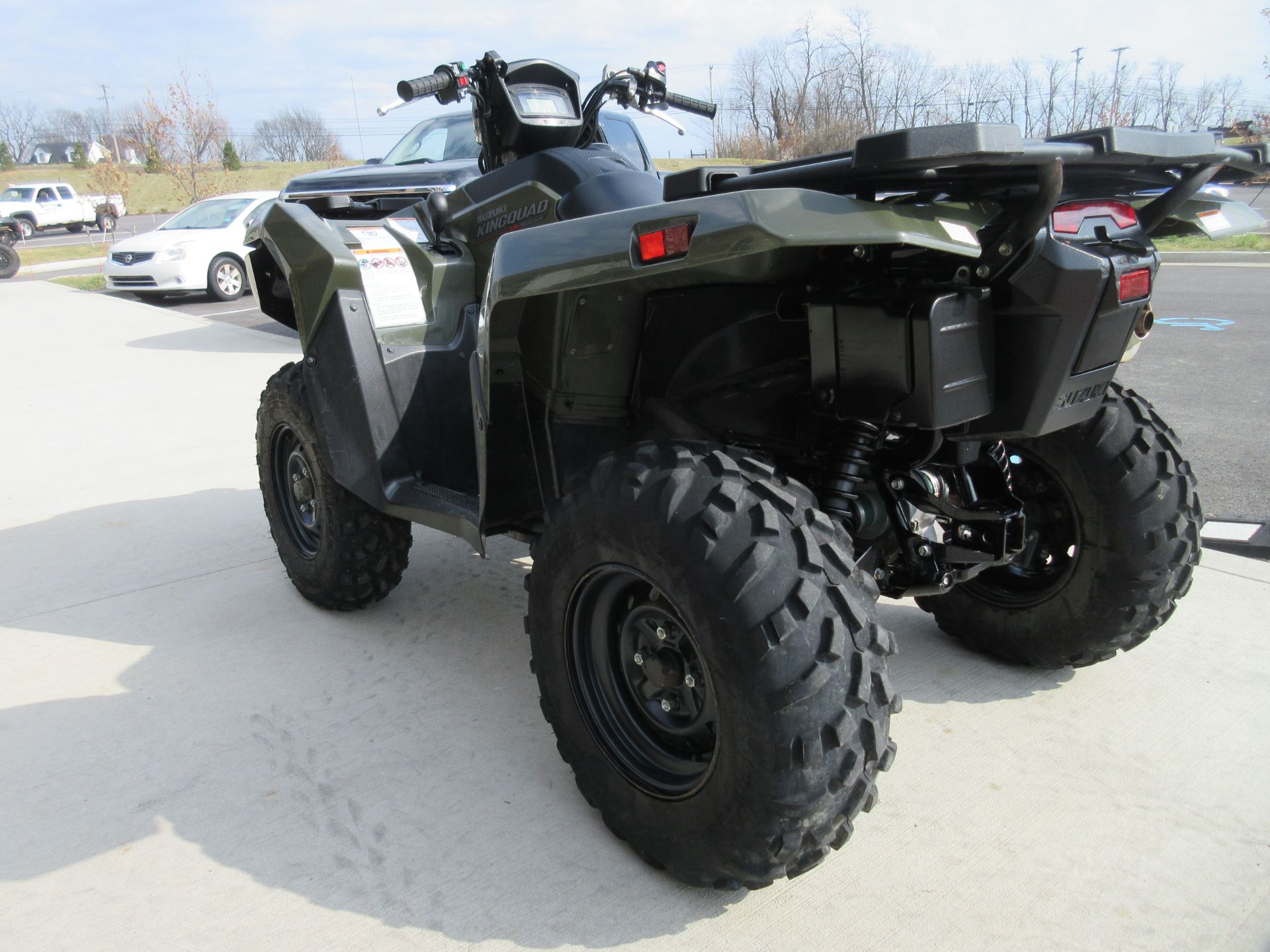

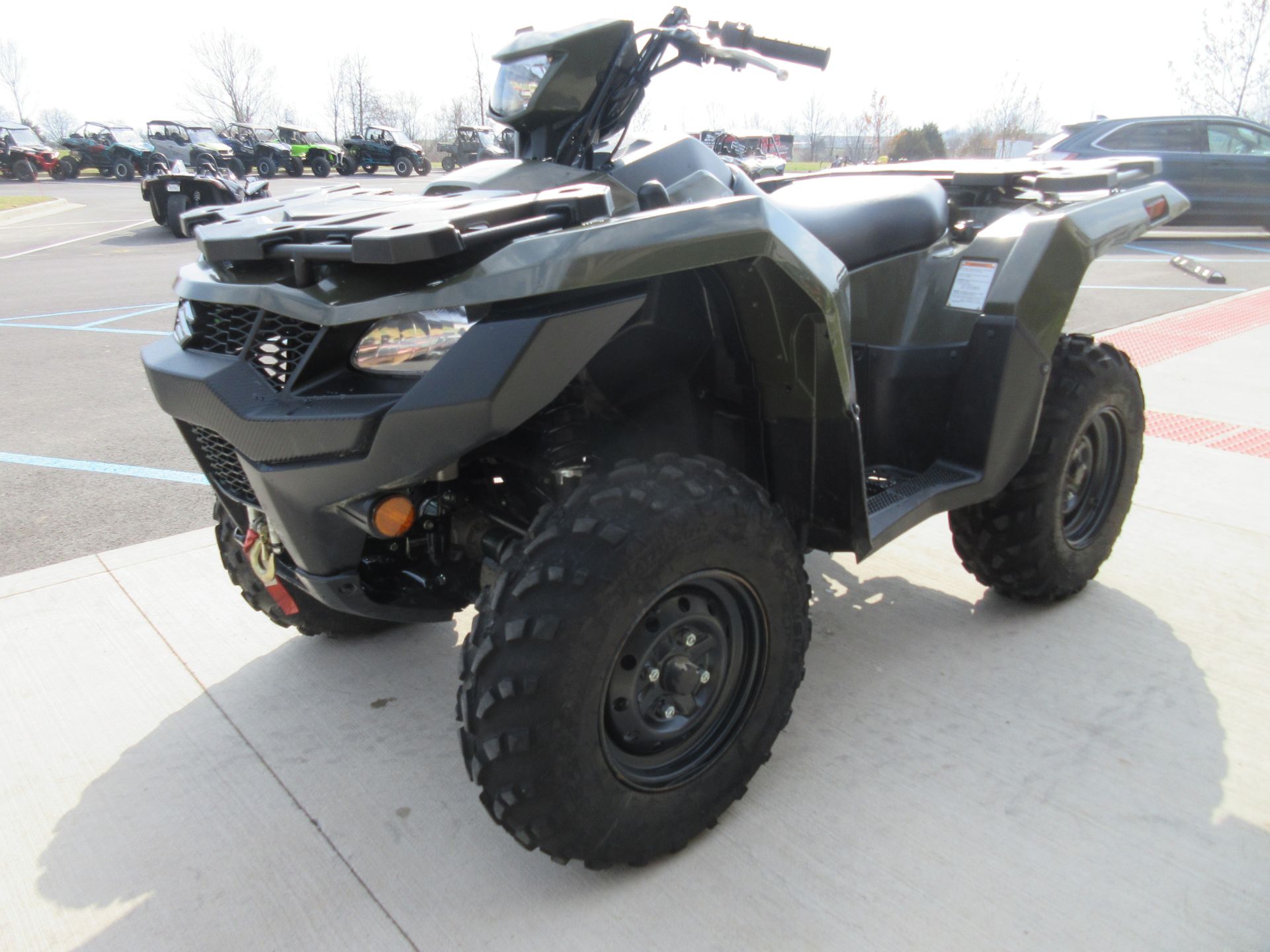

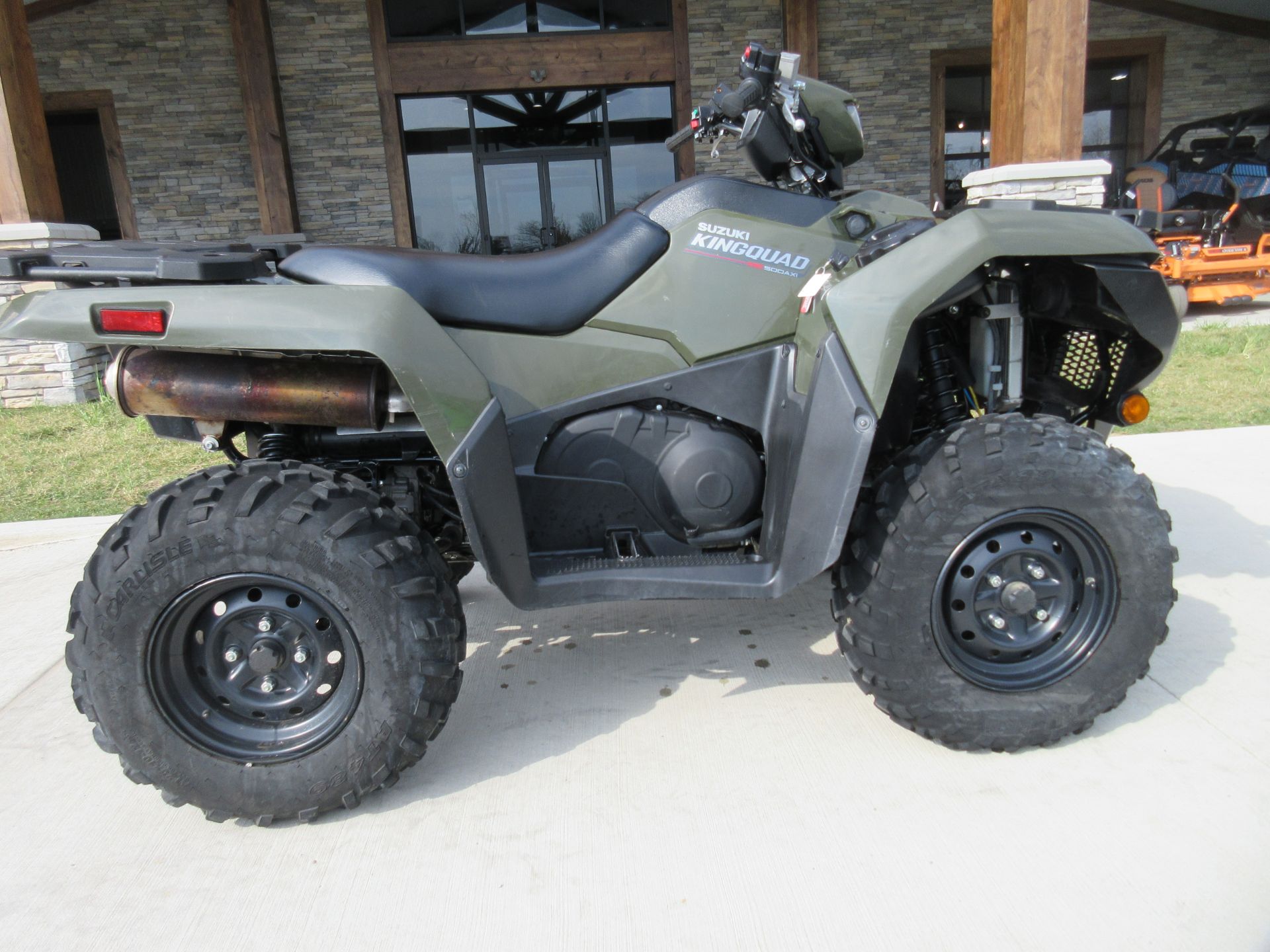

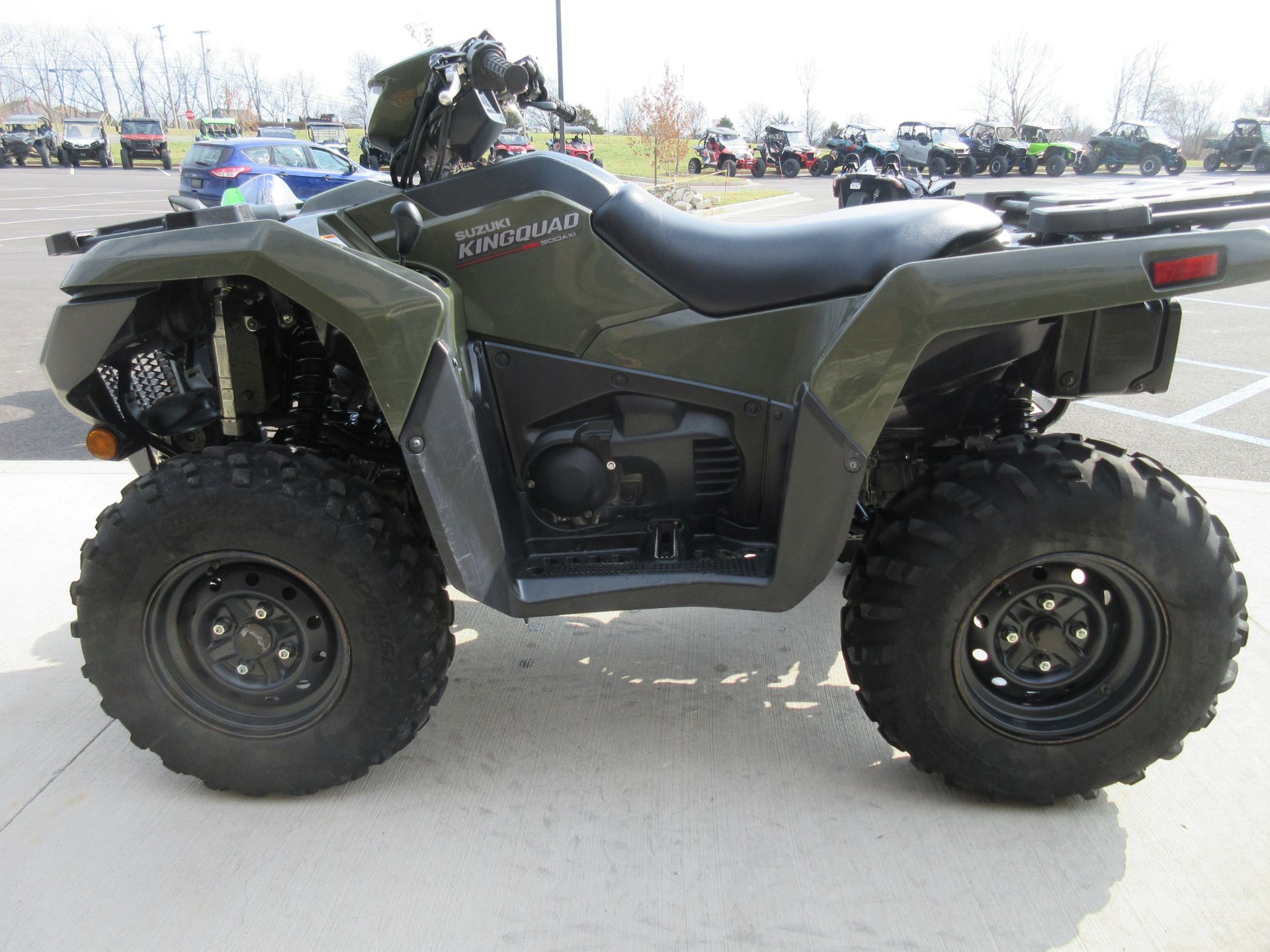

Pre-Owned 2022 Suzuki KingQuad 500AXi Power Steering

Engine Features

LEGENDARY PERFORMANCE, PROVEN RELIABILITY. The 2022 Suzuki KingQuad 500AXi Power Steering is not just a new ATV, it’s a KingQuad ATV . Suzuki, the inventor of the 4-wheel ATV, has created one of the world’s best sports-utility quads with bold styling plus more capability and reliability than ever before . The legacy of the iconic KingQuad remains fresh and exciting, and is ready for you to join its history. With its torque-rich fuel-injected engine, advanced electric power steering, and selectable 4WD with differential lock, this ATV is easy to ride on any terrain with the capabilities that only a KingQuad possesses .

PERFORMANCE SPECIFICATIONS

SPEED & PERFORMANCE PROFILE

50-55 mph Estimated Top Speed:

The 2022 KingQuad 500AXi is engineered for versatile utility and trail performance, with an estimated top speed of approximately 50-55 mph. This provides ample velocity for property management, trail riding, and recreational adventures while maintaining the control and stability expected from a Suzuki utility ATV.

Speed Limiter Override for Severe Conditions:

The KingQuad features a unique speed limiter override button on the left handlebar that can be used to override the normal speed limiter when getting out of mud or extreme conditions . This feature provides extra wheel speed precisely when you need it most to power through challenging terrain.

493cc Fuel-Injected Engine:

The powerful 493cc, SOHC, single-cylinder, liquid-cooled, four-stroke engine is tuned to produce a wide powerband with strong top-end power . Engine highlights include:

• SOHC design with 4 valves for efficient, reliable operation
• Canted forward cylinder for a low center of gravity, resulting in reduced engine height and lower seat height
• Balancer shaft for smooth, vibration-free operation
• Suzuki electronic fuel injection for crisp throttle response and excellent fuel efficiency across the full rev-range
• Lightweight aluminum cylinder with SCEM coating for excellent heat transfer and ring sealing
• Liquid cooling for consistent performance during demanding operation

QuadMatic™ CVT Transmission with High/Low Range:

The QuadMatic™ CVT-type automatic transmission provides versatility and convenience with a fender-mounted gate-type shifter for high/low range selection . Key features include:

• High range: For trail riding and transport between job sites
• Low range: Enhanced torque and controlled speeds for heavy hauling and technical terrain
• Advanced engine-braking system minimizes free-wheeling with the throttle off and helps control the vehicle during descents

Selectable 4WD with Differential Lock:

A compact torque-sensing limited-slip front differential offers potent traction plus light steering, while a differential-lock system provides serious 4WD traction . Handlebar-mounted push-button controls permit easy selection between 2WD, 4WD, and differential-lock 4WD .

ELECTRIC POWER STEERING (EPS)

The KingQuad’s advanced electric power steering system is higher capacity than the prior generation for significantly reduced steering effort that also damps vibration and jolts to the rider . Key benefits include:

• Lighter steering effort at low speeds for easy maneuverability
• Reduced rider fatigue during long workdays
• Vibration damping for a more comfortable ride over rough terrain
• Precise control at higher speeds

The base steering characteristics are tuned to an “under-steer” condition for reduced effort and tighter turning in tight conditions, permitting higher, more comfortable handlebars to be used.

Key Features

• Bold, angular styling, and a relaxed riding position with low-effort electronic power steering.
• Torque-rich, EFI-fed engine, and Quadmatic™ transmission with effective engine braking.
• Removable cargo rack carrier covers helps you set up your KingQuad for any mission.
• Generous towing capacity, fully independent suspension, and easy to ride on any terrain.
• Fender- and handlebar-mounted headlights, LED tail light plus full LCD instrument panel.

Transmission Features

• The Quadmatic™ CVT-type automatic transmission provides versatility and convenience with a fender-mounted gate-type shifter for high/low range selection. Its advanced engine-braking system minimizes free-wheeling with the throttle off and helps control the vehicle during steep descents.
• Handlebar-mounted push-button controls permit easy selection between 2WD, 4WD, and differential-lock 4WD. An override button on the left handlebar can be used to override the normal speed limiter when getting out of mud.
• A compact torque-sensing limited-slip front differential offers potent traction plus light steering. A differential-lock system provides serious 4WD traction.

Chassis Features

• To increase rider comfort, make the ATV easier to ride on any terrain, and increase towing capacity, the KingQuad’s frame has thick-wall tubes and reinforced brackets in key areas.
• The KingQuad’s advanced electric power steering system is higher capacity than the prior generation for significantly reduced steering effort that also damps vibration and jolts to the rider.
• Independent double A-arm front suspension (6.7 inches of wheel travel) includes large diameter, gas-charged shock absorbers with five-way spring preload adjustment.
• A large diameter rear stabilizer bar with compliant bushings helps control body movement while reducing shocks to the rider.
• The sealed, multi-plate rear brake system’s foot brake lever ratio provides great rider control. The rear brake’s clutch-type design means high durability, reduced unsprung weight, and low maintenance.
• Suzuki’s plush T-shaped seat delivers rider mobility during spirited or difficult terrain riding.
• The base steering characteristics are now tuned to an “under-steer” condition for reduced effort and tighter turning in tight conditions. This permits higher, more comfortable handlebars to be used.

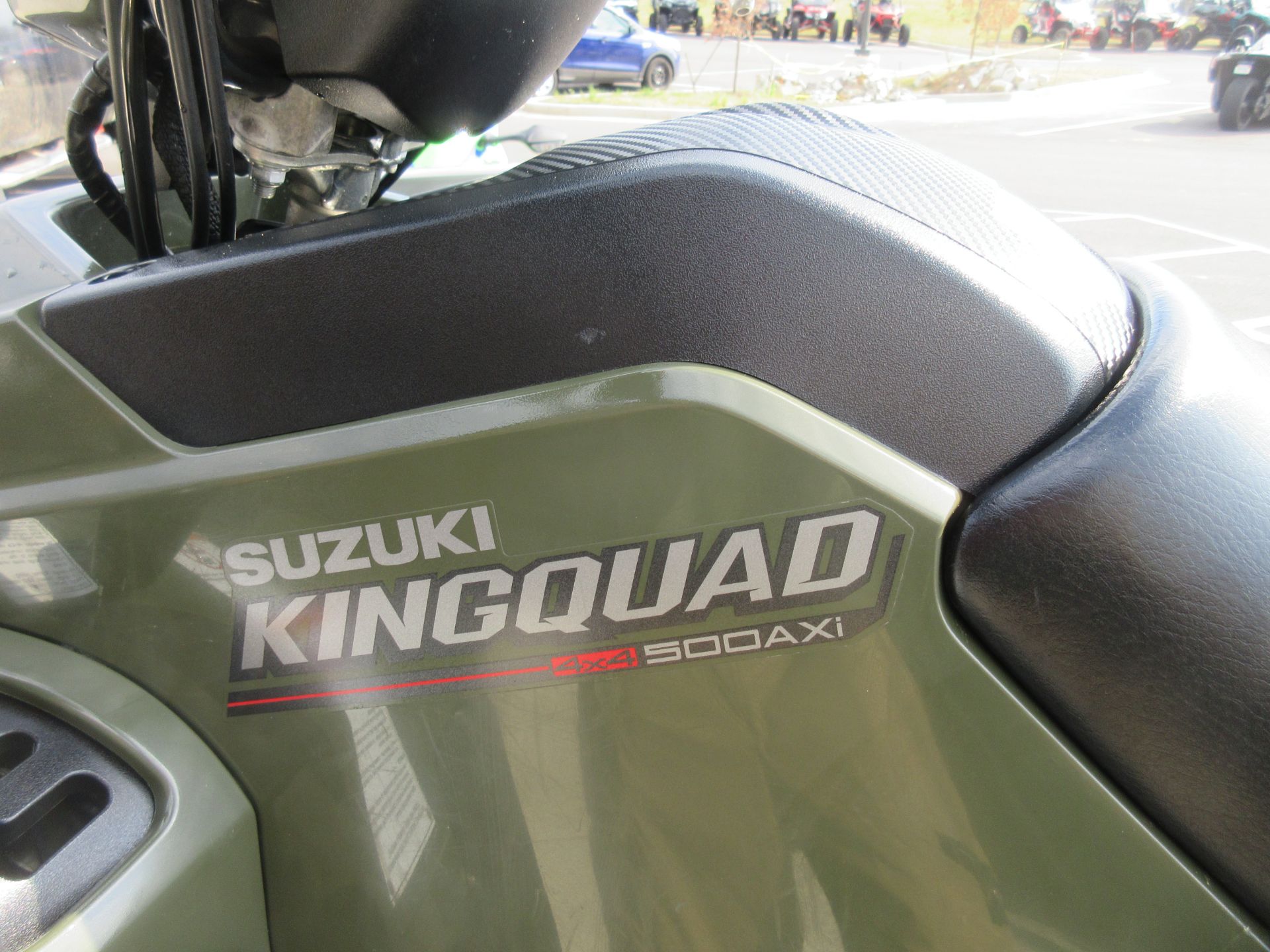

• The bold, angular bodywork features high-clearance fenders that offer great protection for the rider from flying debris. Refined panels simplify maintenance needs, such as oil level checks and fuel and air filter service.
• Fully independent, A-arm/I-beam rear suspension with 7.7 inches of wheel travel includes large diameter, gas-charged shock absorbers with five-way spring preload adjustment.
• The dual hydraulic front disc brakes combine high-friction brake pad material, fluid lines, and a lever ratio to provide optimal braking performance.
• High traction 25-inch Carlisle tires are mounted on strong steel wheels with a durable, powder-coated matte-black finish.
• Polyethylene skid plates provide protection with minimal resistance over rocks and rough terrain. Durable plastic guards protect the front and rear half shafts.

Utility / Convenience Features

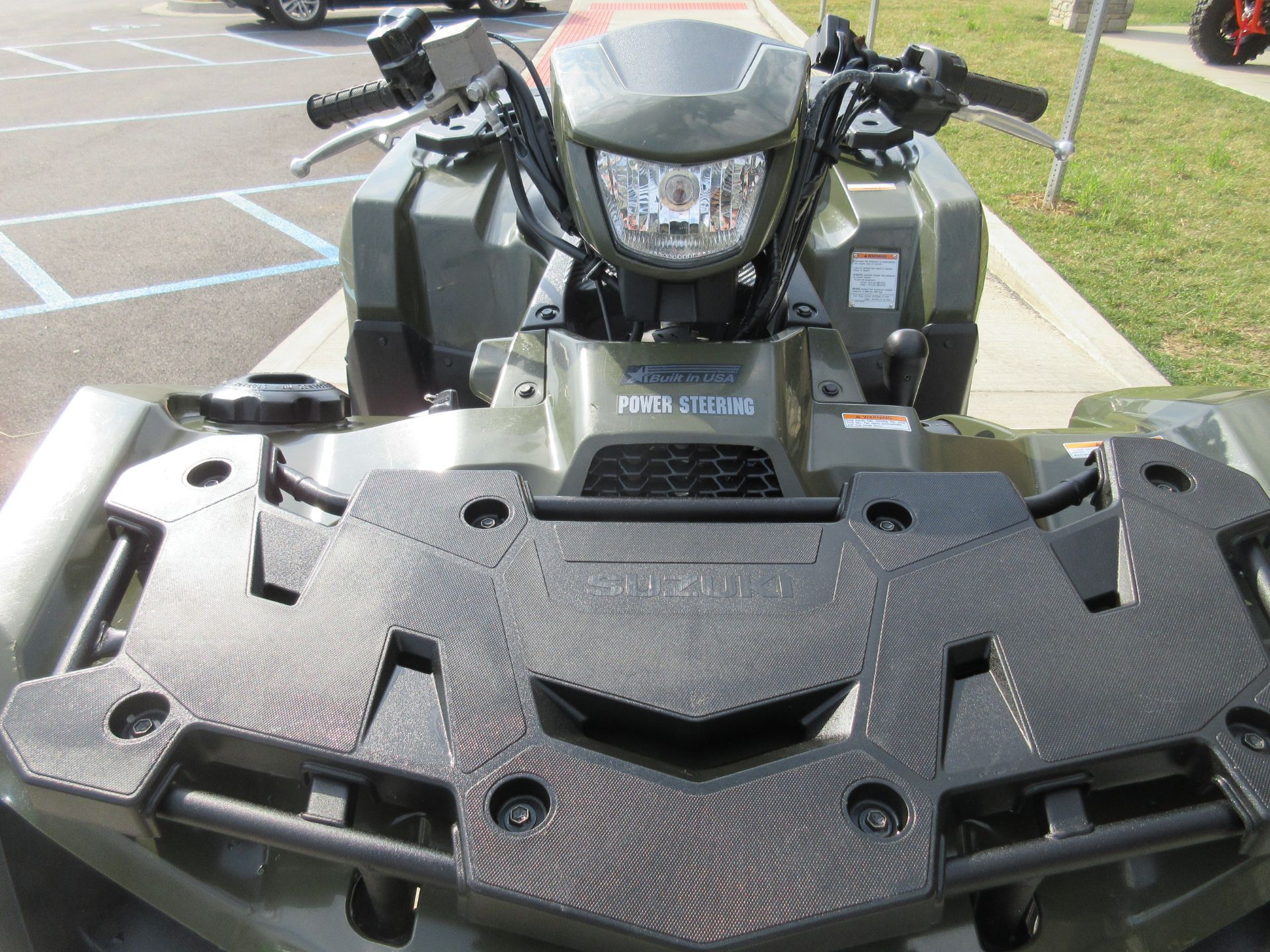

• The 35-watt handlebar-mounted headlight illuminates the trail in the direction you are steering the ATV. Dual 35-watt headlights (with high and low settings) are part of the KingQuad’s distinctive bodywork.
• A receiver-type trailer hitch mount makes it easy to select the type of equipment you want to move with the KingQuad’s higher towing capacity (up to 1322 pounds).

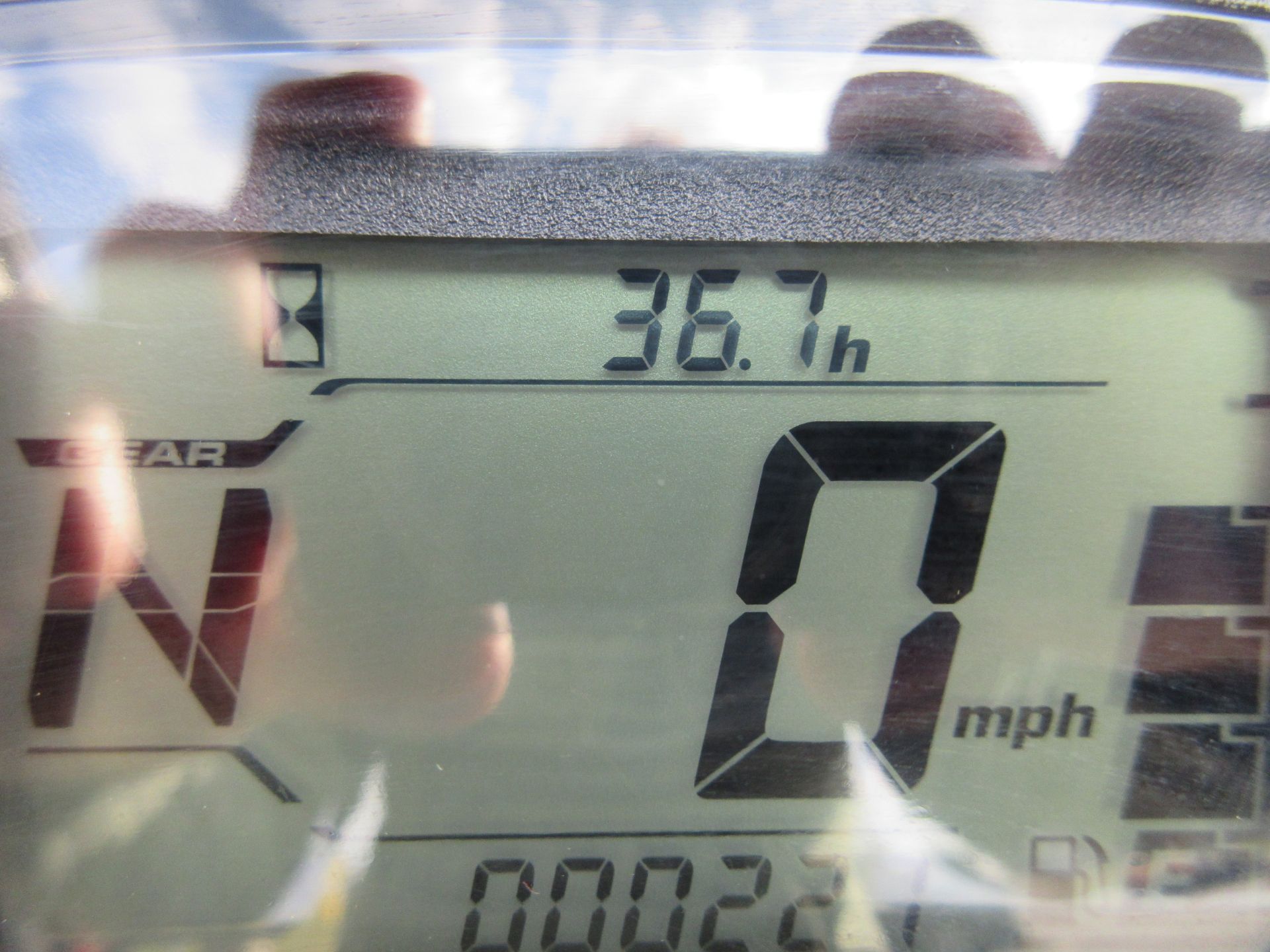

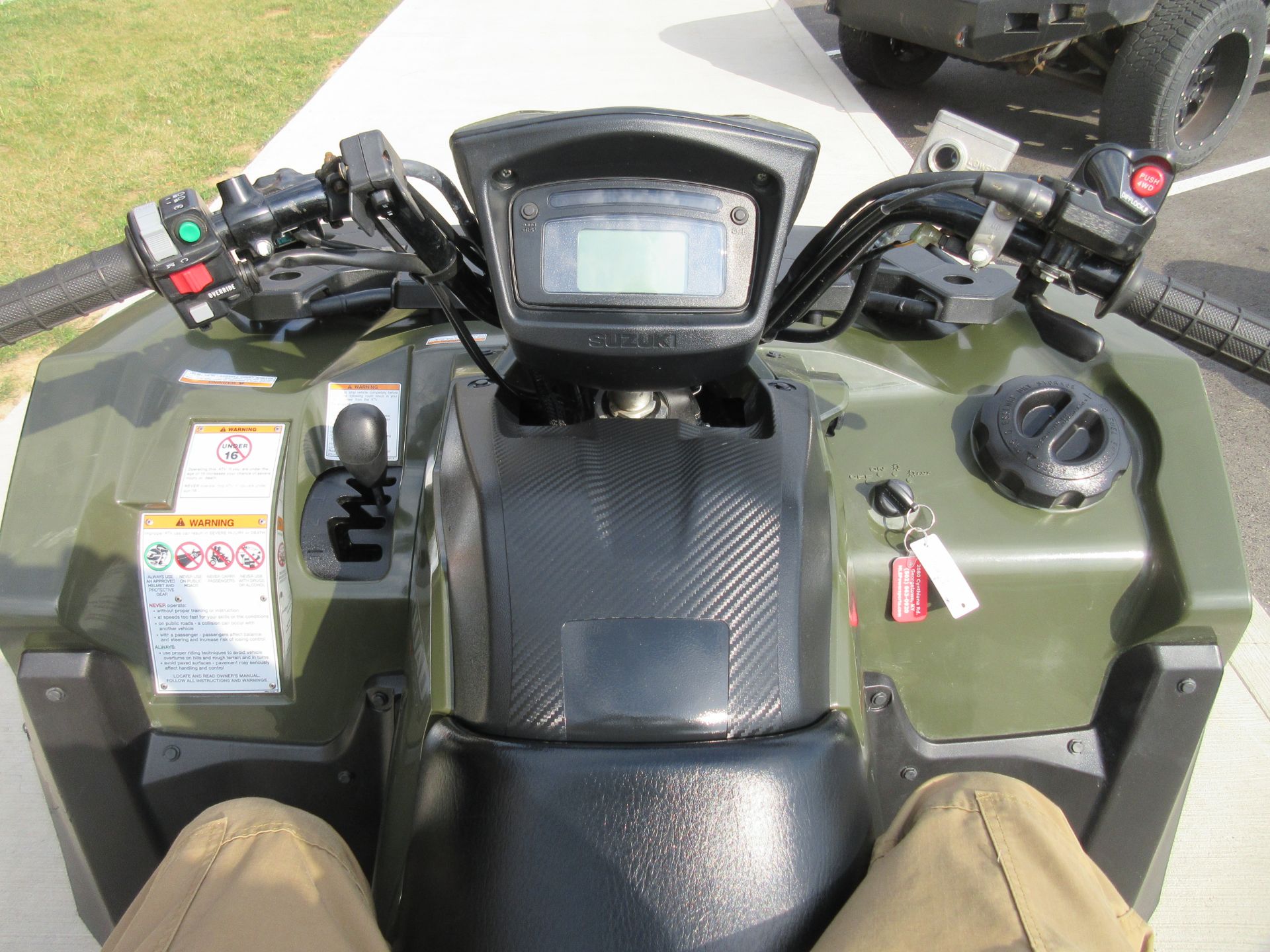

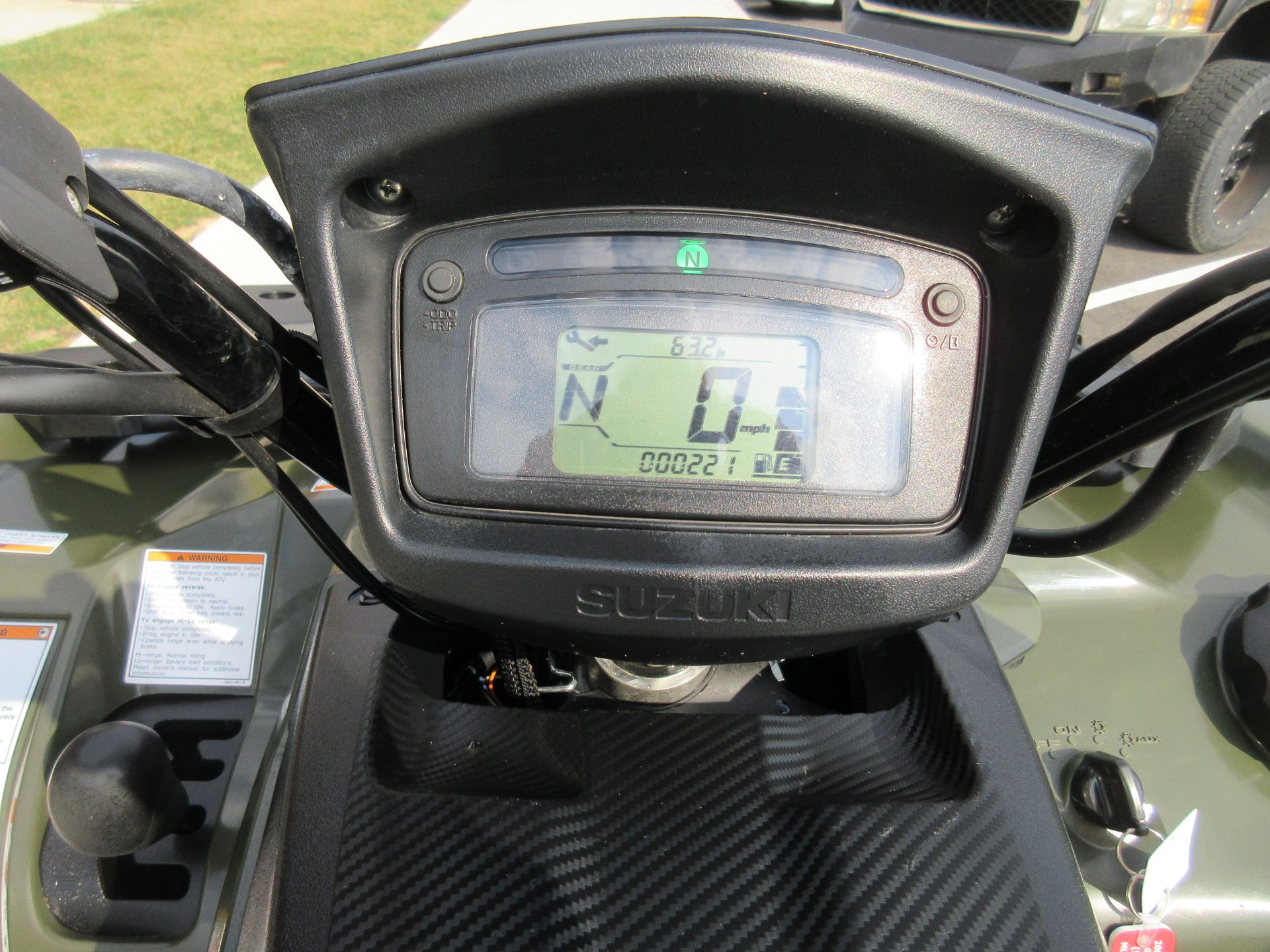

• The multi-function instrument panel has improved appearance and visibility and provides service reminders based on running time or mileage. The instrumentation includes LCD readouts for speedometer, odometer, twin trip meter, hour meter, clock, fuel level, driving range, and drive mode. There are LED indicators for high, low, neutral, reverse, 2WD/4WD, and differential-locked 4WD and LED cautions for fuel injection and engine temperature.
• The large 4.6 gallon (17.5 L) fuel tank is positioned for a low center of gravity. It includes a vacuum-operated petcock and a ratchet-style filler cap (which prevents overtightening so it can be easily unscrewed for refilling).
• The rugged front and rear steel-tube cargo racks have wrinkle paint finish for durability and scratch resistance.
• Full floorboards with integrated raised footpegs provide protection.

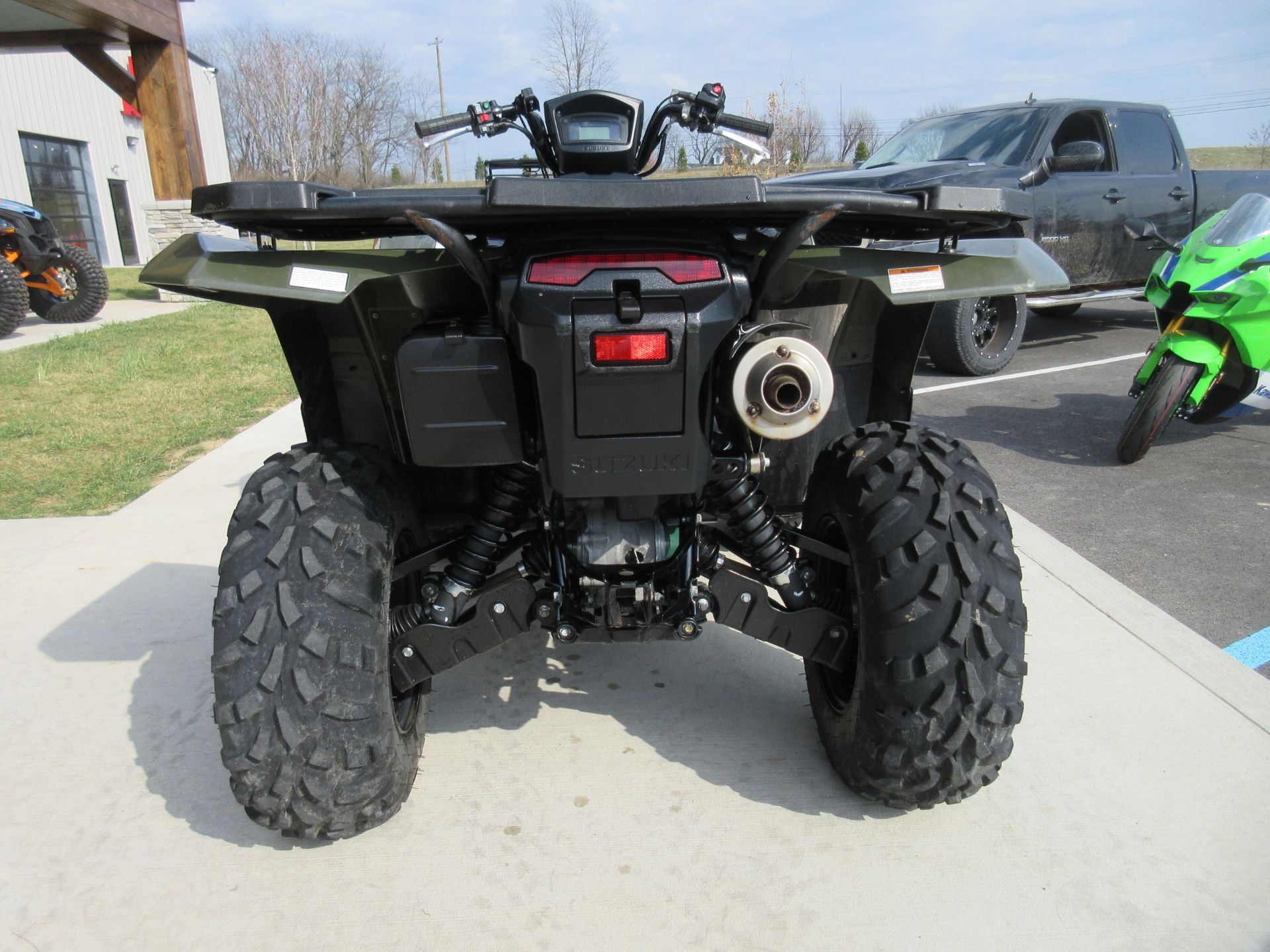

• The low-draw and bright LED tail light helps make the ATV visible in dark conditions while conserving power.

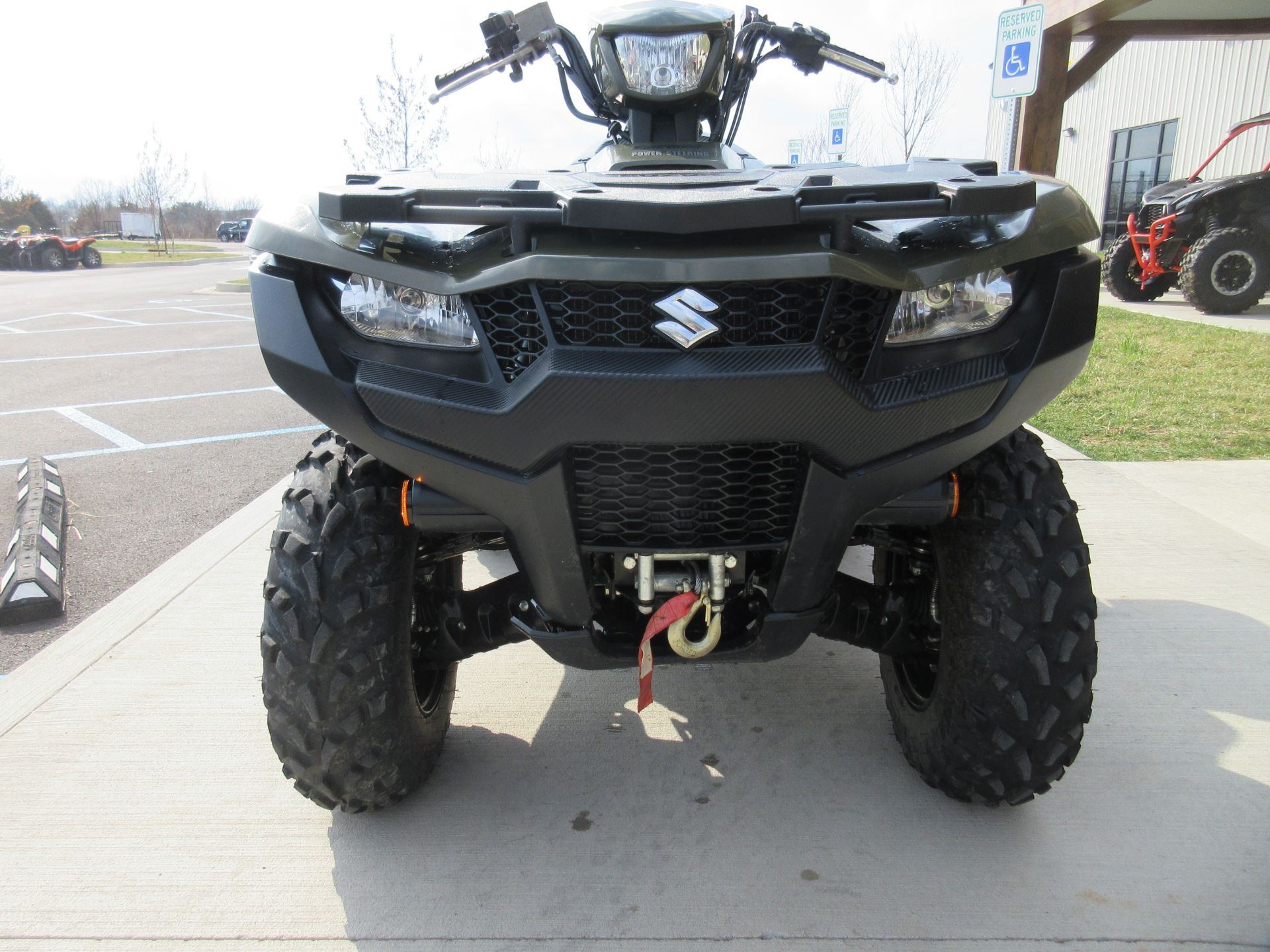

• Winch-ready mounts and wire conduit make winch installation simple.
• High-output, three-phase charging system feeds an 18-amp maintenance-free battery for abundant power for easy starting and accessory use. A sealed 12V accessory outlet is standard.
• A large 4.0-liter storage compartment is centrally located to the rear of the ATV adjacent to the existing 4.0-liter left-side compartment, providing generous cargo capacity. The 2.8-liter water-resistant front storage compartment includes an easy access screw-on cap.
