• Heating & Air Conditioning HVAC System
• Premium RANGER Pro Shield Cab System
• Polaris HD 4,500 lb. Winch with Synthetic Rope and Autostop
• Sport Roof with Premium Liner & Dome Light
• Lock & Ride Glass Windshield with Wiper/Washer System
• Lock & Ride Glass Rear Panel
• Premium Manual Crank Window Doors

ULTIMATE OFF-ROAD CLIMATE CONTROL. Escape the heat and lock out the cold with the industry’s most premium cab and HVAC. The 2023 Polaris Ranger XP 1000 NorthStar Edition Premium is the undisputed king of utility side-by-sides, delivering class-leading 82 HP power, best-in-class towing capacity, and the ultimate all-weather comfort with factory-installed heating and air conditioning . Whether you’re hauling feed on a freezing morning or managing property under the blazing sun, this machine is purpose-built so you can work harder, haul more, and get more done in total comfort .

PERFORMANCE SPECIFICATIONS

SPEED & PERFORMANCE PROFILE

Programmable Speed Limiting:

The NorthStar Edition Premium features a dedicated speed limiting control integrated into the gauge cluster. Operators can program maximum speed parameters directly through the 4-inch LCD rider information center . This feature is ideal for fleet management, ensuring safe operation for different operators, or maintaining controlled speeds during specific tasks like spraying or seeding. The speed limiting function provides peace of mind and enhances safety across diverse applications.

Selectable 3-Mode Throttle Control:

Tailor power delivery to match your task with three user-selectable throttle modes :

• Performance Mode: More aggressive throttle response for spirited trail riding and faster transport
• Standard Mode: Balanced performance for everyday utility tasks
• Work Mode: Smoothed power delivery for precise low-speed control and maneuvering

82 HP ProStar Engine:

The 999cc ProStar twin-cylinder engine cranks out 82 horsepower and 62 lb-ft of torque, delivering best-in-class power for class-leading towing and payload capacity . Engine highlights include:

• Liquid cooling for consistent performance during demanding operation
• Electronic Fuel Injection for crisp throttle response in all conditions
• DOHC design with 8 valves (4 per cylinder) for efficient breathing
• Purpose-designed, built, and tuned for heavy-duty utility applications

On-Demand True AWD with VersaTrac Turf Mode:

The advanced drive system offers exceptional versatility with three selectable modes :

• 2WD: Efficient operation for light-duty use and cruising
• On-Demand True AWD: Automatically engages front wheels when rear wheel slippage is detected
• VersaTrac Turf Mode: Unlocks the rear differential for tight turns without damaging sensitive surfaces

PVT Transmission with High/Low Range:

The automatic Polaris Variable Transmission (PVT) features high and low ranges, neutral, reverse, and park (H/L/N/R/P), allowing operators to match speed and power to the task at hand :

• High Range (H): For efficient trail riding and transport between job sites
• Low Range (L): Enhanced torque and controlled speeds for heavy hauling and technical terrain

• Bed Box Dimensions (L x W x H): 36.75 x 54.25 x 12.5 in (93.3 x 137.8 x 31.75 cm)
• Box Capacity: 1,000 lb (454 kg)
• Box Capacity: California Models (EVAP): 600 lb (272 kg)
• Estimated Dry Weight: 1,913 lbs (867 kg)
• Fuel Capacity: 11.5 gal (43.5 L)
• Ground Clearance: 13 in (33 cm)
• GVW: 3,600 lb (1,632.9 kg)
• Hitch Towing Rating: 2,500 lbs (1,133.9 kg)
• Hitch Type: Standard 2 in (5.08 cm) Receiver
• Overall Vehicle Size (L x W x H): 120 x 65 x 78 in (305 x 165 x 198 cm)
• Payload Capacity: 1,275 lb (578.3 kg)
• Person Capacity: 3
• Wheelbase: 81 in (206 cm)

• Front/Rear Brakes: 4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
• Parking Brake: Park In-Transmission

• Adjustable Driver Seat: Standard
• Cargo System: Lock & Ride®
• Color / Graphics: Bronson Rock Smoke
• Electronic Power Steering: Standard
• Gauge: C4

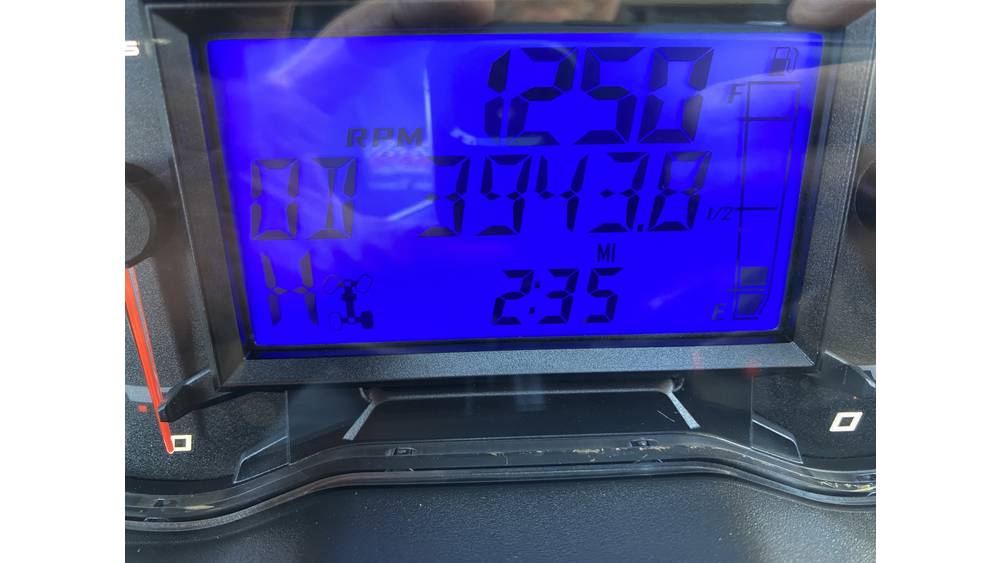

• Instrumentation: Dual-sweep Analog Dials w/ 4″ LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, 1 DC Outlet, 1 USB Charge Port
• Lighting: Dual LED Headlamps, 1250lm Low Beam, 2300lm High Beam, Dual LED Taillamps
• Other Standard Features: Polaris HD 4,500 Lb. Synthetic Rope Winch with Autostop and Wireless Remote, Premium Pro-Shield Cab, Doors with Crank Windows, Fixed Glass Windshield with Wiper, Rear Glass Panel, Dome Light, Rearview Mirror, Heat, AC, Defrost, Premium Cut & Sew Seats with Contoured Seatbacks and Embroidered Polaris Branding, Premium Steering Wheel and Interior Accents, Polaris Pulse Electrical System with 6-Position Underhood Busbar and 6-Position Roof Busbar, Standard In-Dash SAE Charge Port, NFC Front Badge
• RIDE COMMAND+: Available
• Tilt Steering: Standard

• Front Tires: 27 x 9-14; Pro Armor X-Terrain
• Rear Tires: 27 x 11-14; Pro Armor X-Terrain
• Tire Ply Rating: 8 Ply Rated
• Wheels: 14 in. (35.6 cm) Aluminum

• Front Suspension: Dual A-Arm 11 in (27.9 cm) Travel
• Rear Suspension: Dual A-Arm, IRS 11 in (27.9 cm) Travel
• Turning Radius: 160 in. (406.4 cm)
